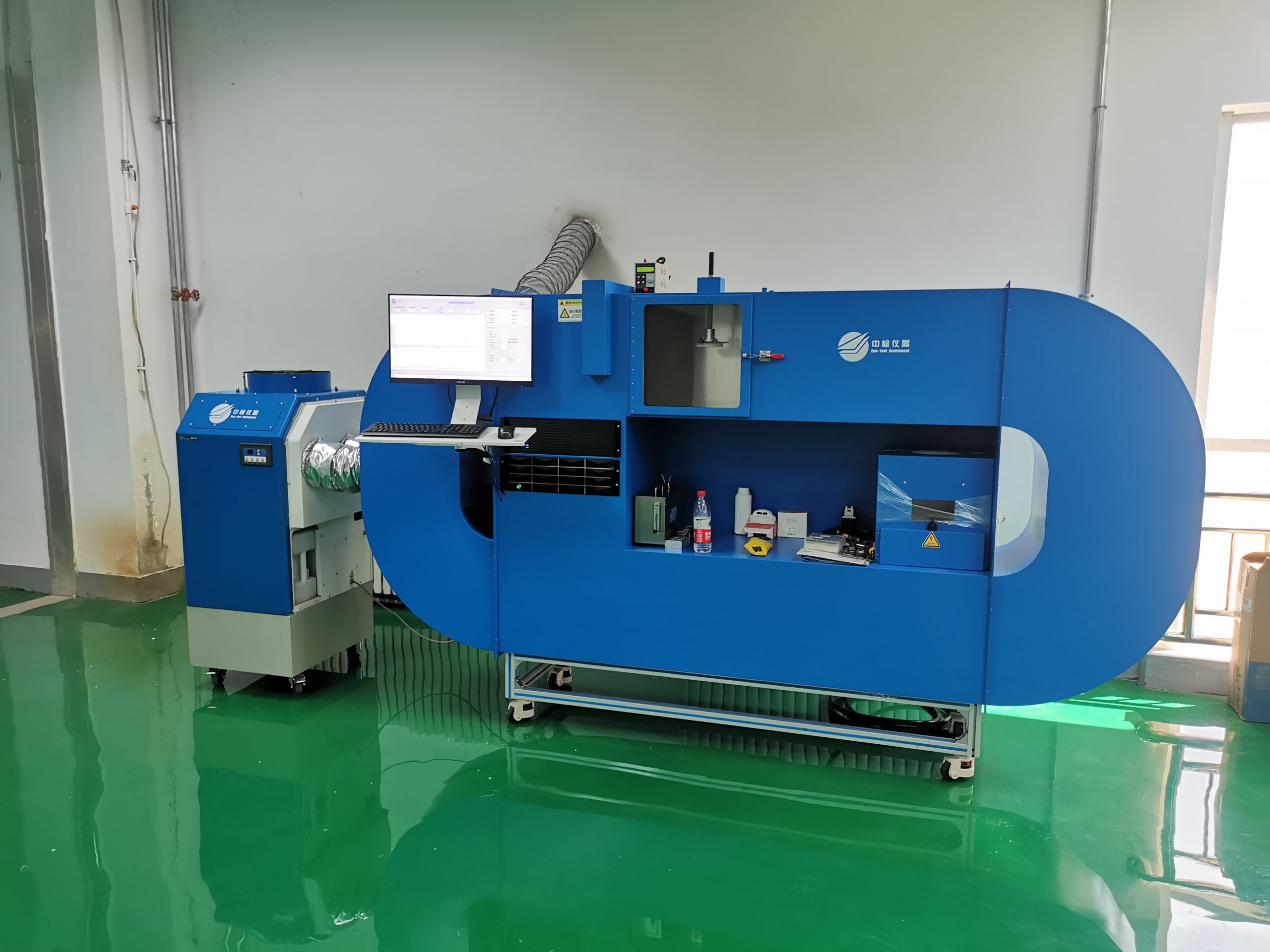

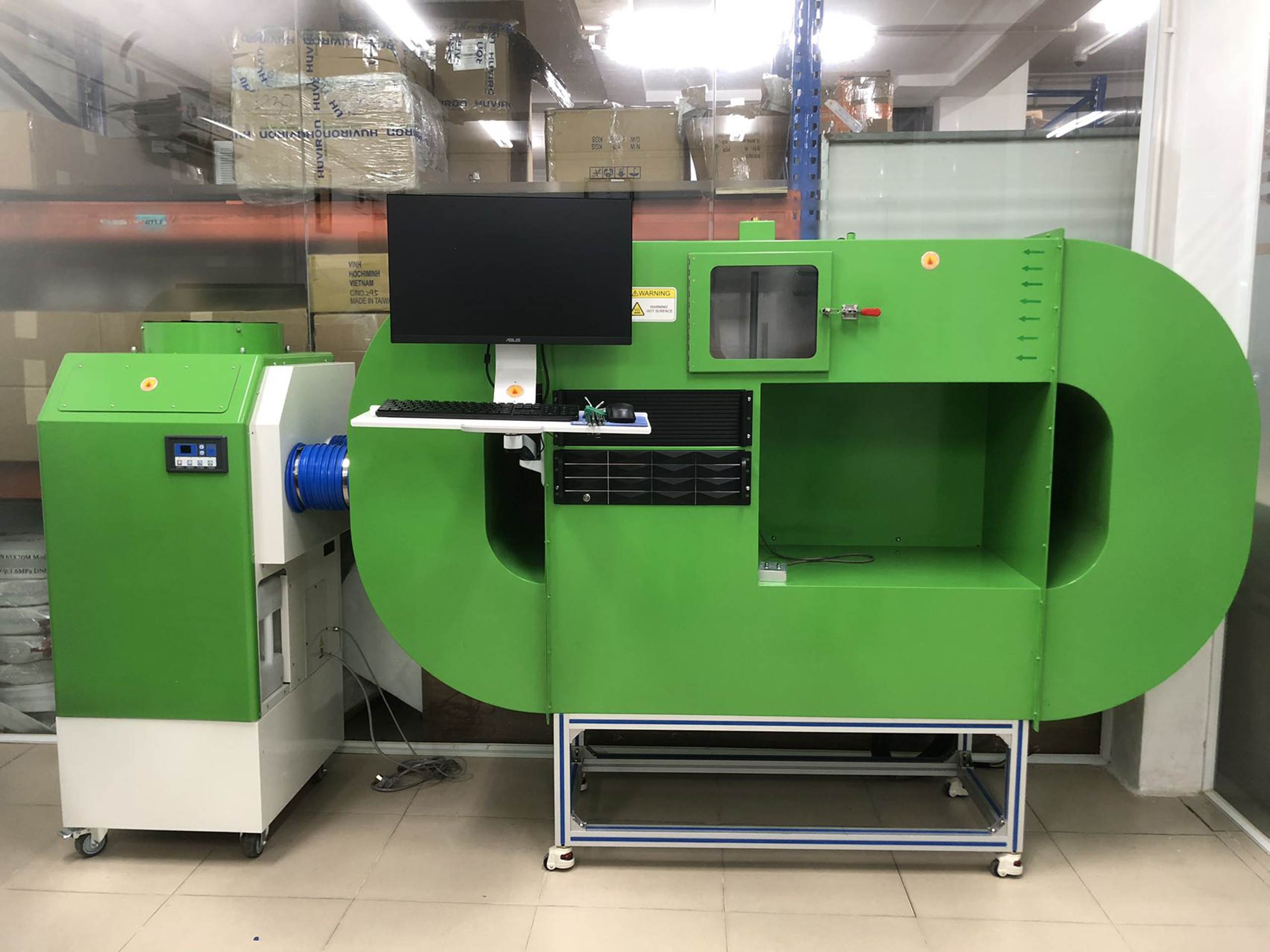

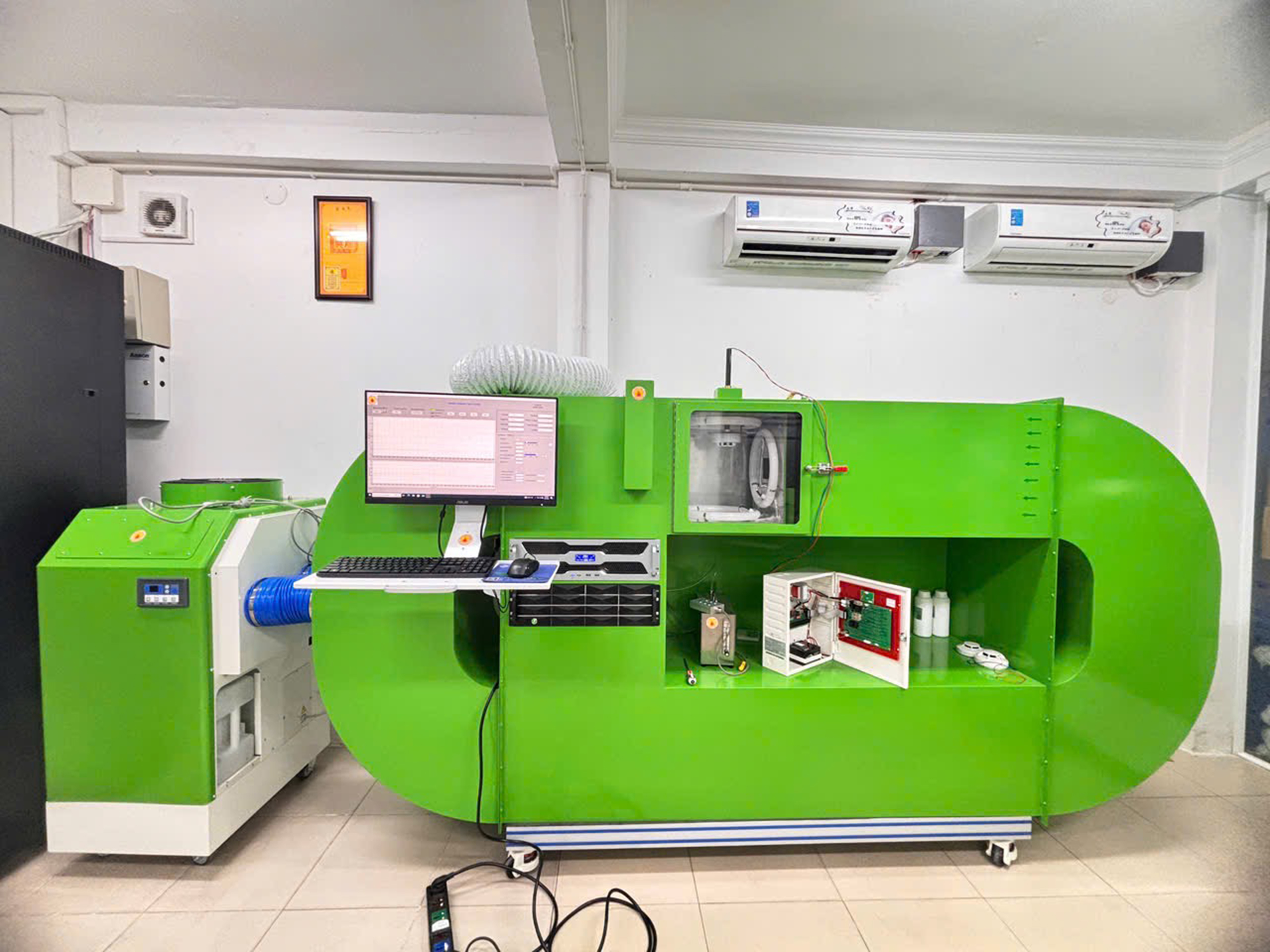

Equipment Function ： The equipment is intended for smoke alarm or smoke detectors sampling test. The smoke box is constructed typical sensitivity smoke test chamber construction as specified in appendix B of UL 217 8 th editions or UL 268 similarly. It consists of the following items: Outer Cabinet: constructed of exterior grade plywood according to standards dimension Inner compartment: constructed of plywood according to standards dimension Circulating fan: DC fan powered DC power supply Exhaust fan: AC fan Photocell: as standard recommended Lamp: as standard recommended Data acquisition device: Computer with National Instruments DAQ card Aerosol generator: special design aerosol generator that can adjust build up rate and particle size to meet the UL 217 and UL 268 test profile. Software: Zon-test Smoke box software. The smoke box can be used to perform initial sensitivity test, directionality test, velocity- sensitivity test and other stability test with auxiliary equipment. Note: The UL 217 and UL 268 standard required Measuring Ionization Chamber (MIC) to be included to monitoring smoke particles size. The MIC is not included in quotation if no specified but the mounting port and data acquisition connection port are reserved.

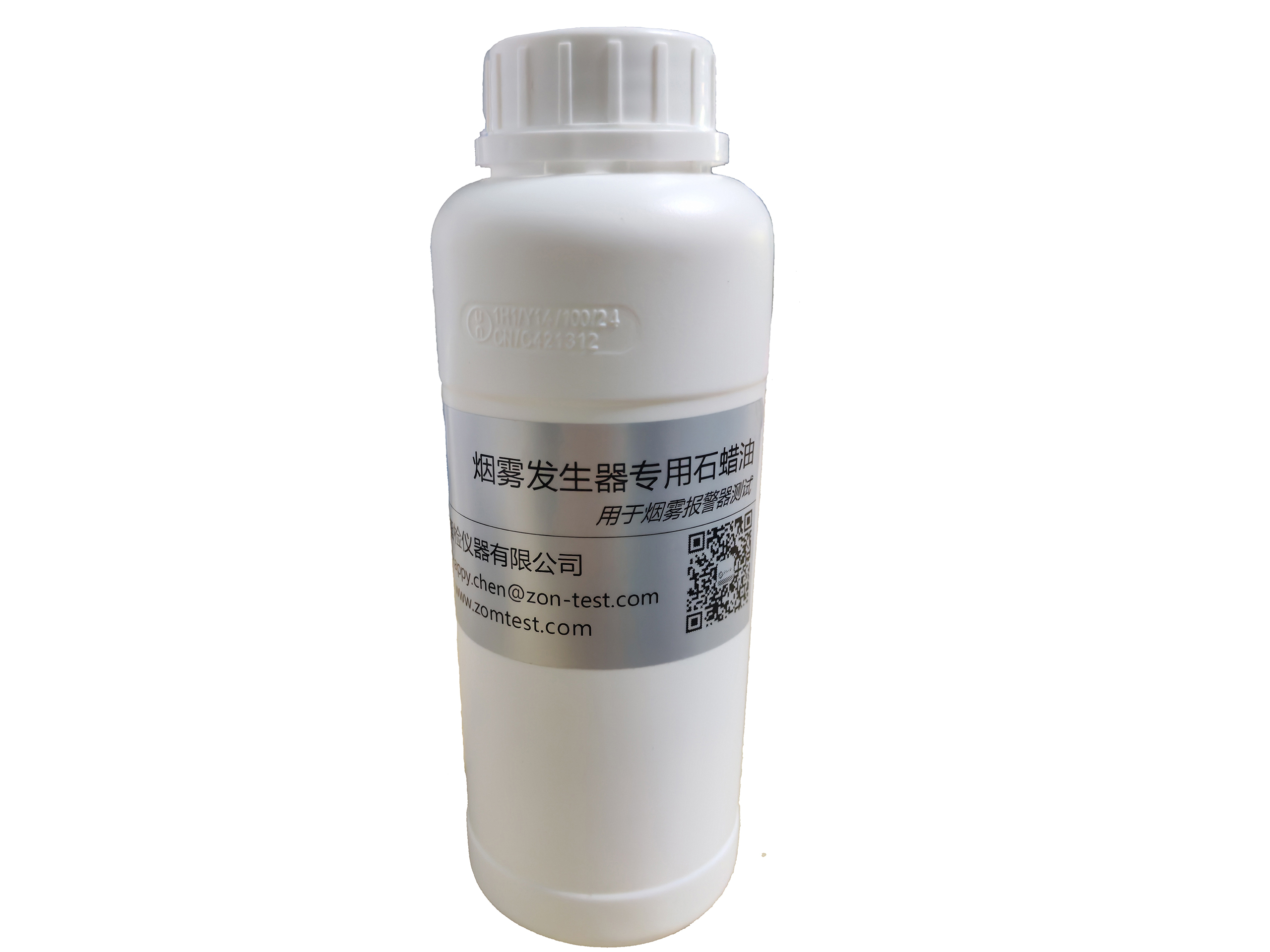

Device features: The composition of paraffin oil for smoke generators mainly includes mineral oil, water and soluble powder. Among them, mineral oil is one of the main components of smoke generators, and its role is to provide volatile substances that enable oil to be converted into smoke. Water is added to reduce the risk of fire from the oil in the smoke generator, and its role is to improve the safety of the smoke generator. Soluble powders are used to increase the density and stability of smoke. The smoke produced by the smoke generator is safe and non-toxic and will not cause harm to the human body. The main components of the smoke sprayed by the fire smoke generator are water and propylene glycol, which is food-grade smoke, safe, non-toxic and residue-free. Equipment parameters: 1) Model: 500ml 2) Brand: Zhijian 3) Odor: colorless and odorless 4) Medium: light paraffin water

Smoke alarm – 智检仪器专业生产销售烟雾报警器探测器测试标准烟箱

Q: ZNOBS110 Obscuration meter

Equipment Function ： Optical smoke density meters are mainly used to measure the concentration of smoke or aerosols. The ZNOBS110 optical smoke density meter emits transmitted light from an infrared light source through the testing area of the smoke box and reflects it into the photoelectric element. By measuring the attenuation of the photoelectric signal, the concentration of smoke or aerosol in the smoke box is measured. The intelligent inspection instrument ZNOBS110 model optical smoke density meter adopts imported components and advanced photoelectric system, which can withstand the influence of environmental temperature changes and environmental light. Zero drift and temperature drift are extremely small, and can operate stably for a long time. The ZNOBS110 optical smoke density meter is suitable for use in standard smoke detector test boxes, fire test rooms, and other applicable occasions such as EN 54-7, EN 14604, GB 4715, GB 20517, etc. Specification ： 1) Model: ZNOBS110 2) Power: 12VDC Power: 10W 3) Applicable standards: EN14604, EN54-7, GB20517, GB4715 4) Detection type: Transmitted light 5) Light source wavelength: 880nm~950nm, 6) Range: 0-2 dB/m, 7) Zero drift 0.2% F.S.

Q: Imported standard cotton wick cotton rope smoke alarm test

The imported standard cotton wick burns for a long time, the smoke is uniform, the smoke rise rate and particle size can be adjusted, and the cost of consumables can be reduced.

Q: Fire Sensitivity Laboratory

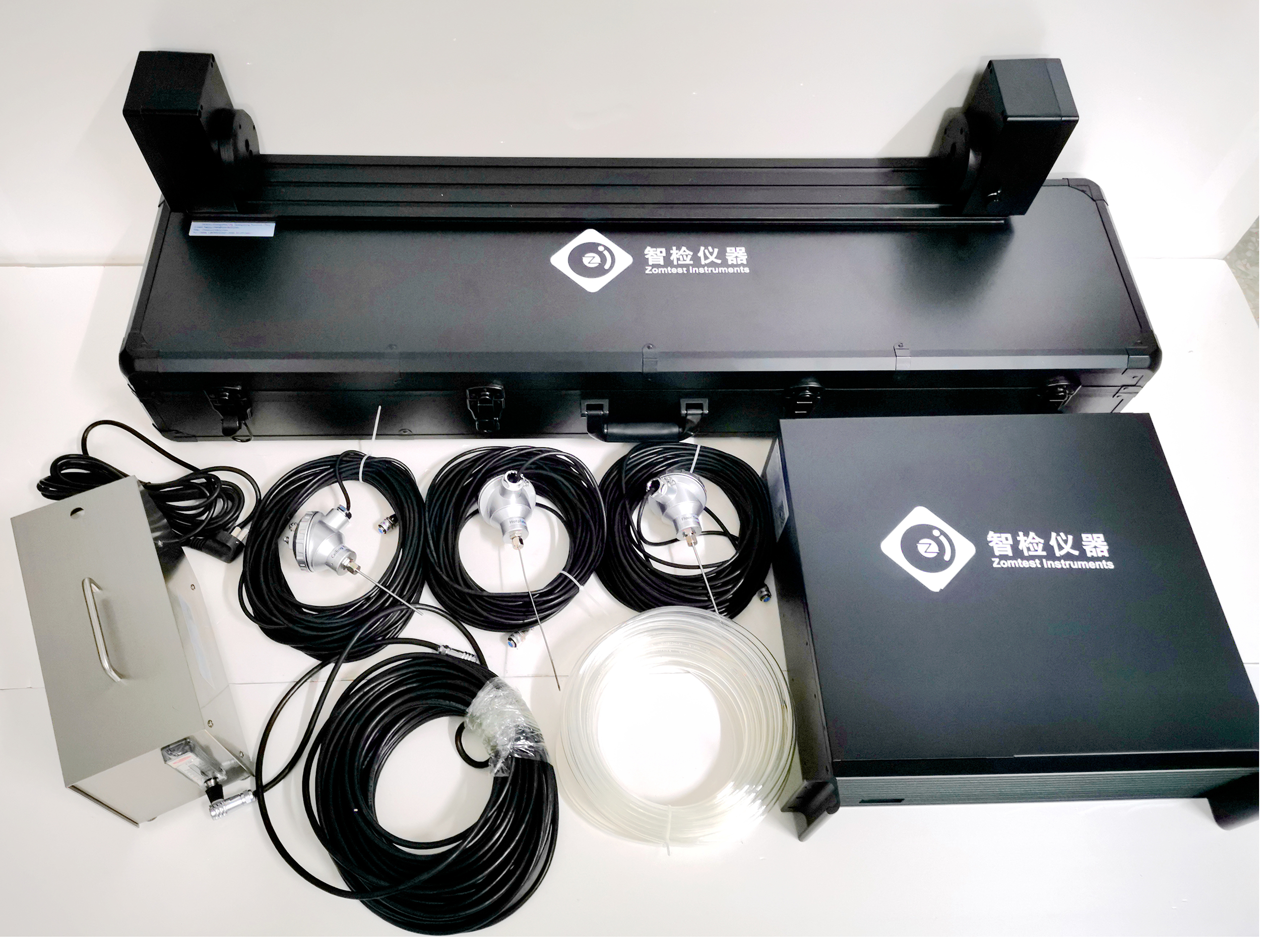

Device features: The fire sensitivity laboratory is suitable for use in UL 217, UL268 and other standard fire test rooms, testing system room temperature sensor, furnace temperature sensor, data acquisition, computer and testing software. The test software can be connected to collect real-time test data such as optical smoke density meter, ion concentration meter, temperature and humidity sensor, record alarm values, and the software can select various material combustion test curves. Equipment Parameters : Model: ZNULFIR-1 Power supply: 220VAC power: 1Kw Applicable standards: UL 217, UL 268 Standard Components: Four-way photocell sensor Acquisition of four MIC signals (MIC ion concentration meter sold separately) Controller cabinets A carbon monoxide gas analyzer Two room temperature sensors, one humidity sensor and one furnace temperature sensor One igniter, one electric oven heating control Collect 8 detector alarm signals Igniter, fuel basin, electric stove, electric oven Optional Components: 1) Burn wood, burn cotton rope, polyurethane foam, beef patty 2) Ion concentration meter

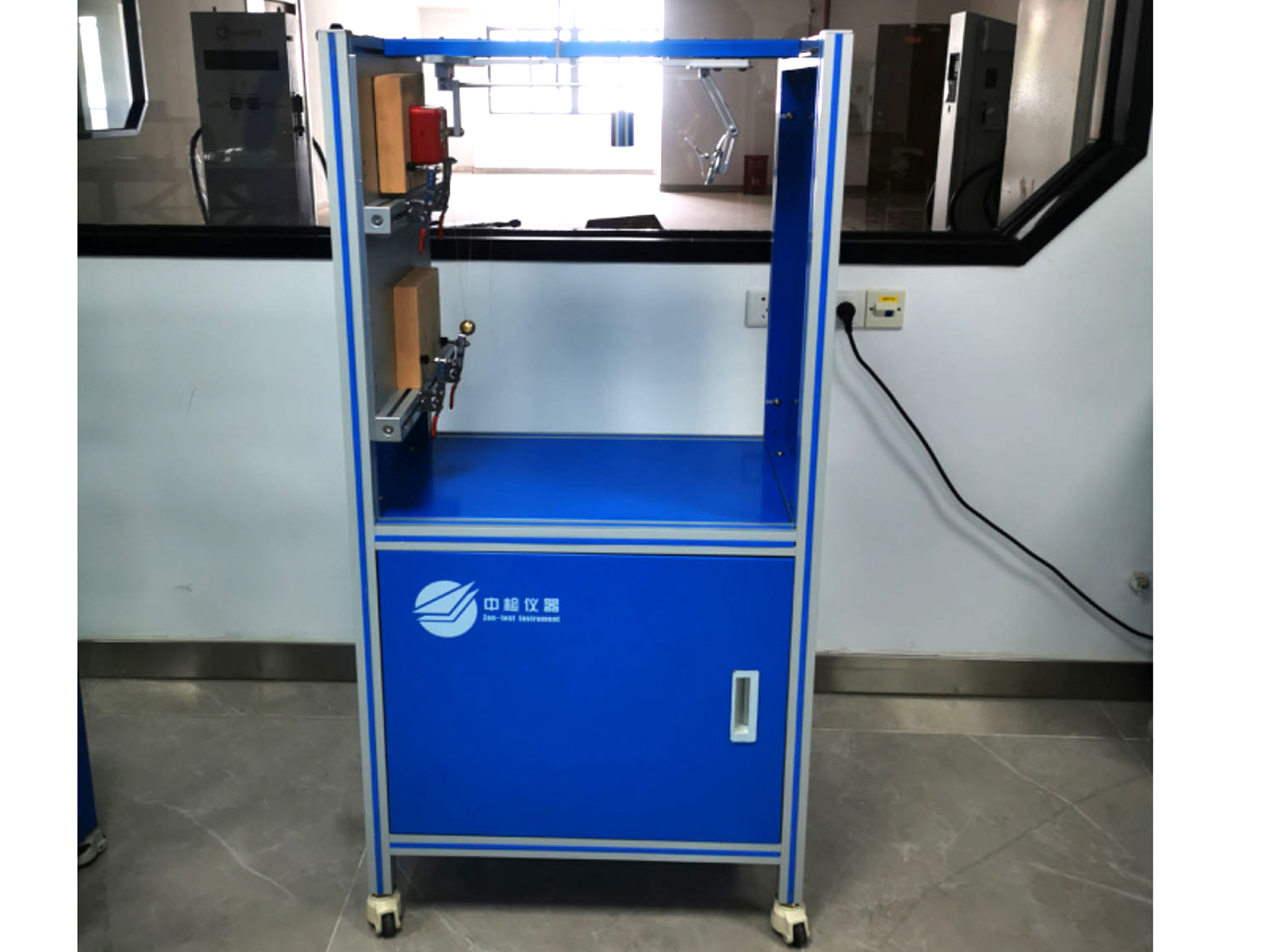

Q: Manual fire alarm button test device

Device features: The manual fire alarm button test device is designed and produced in accordance with the EN 54-11 annex and includes both operational and non-operational functional testing equipment. The front and rear positions are easily adjusted by the handwheel, which is suitable for various types of hand-to-hand newspapers: GB 19880 Manual Fire Alarm ButtonBSEN 54-11 Fire detection and fire alarm systems. Manual call points The Manual Call point test device included operation test device and non-operation test device as specified in EN 54-11and ISO standards. The operation test device consist of brass spherical ball, and adjustable suspending arm, mounting board and release fixture. The non-operation test device consist of lever, and adjustable suspending pivot, mounting board and weight.It’s used to test the operation performance of Manual call points (MCP) for fire detection and fire alarm systems. Equipment Parameters : Model: ZNEN54-11 Standards: EN54-11, GB 19880 Machine size: 800 mm long, 600mm wide, 1500mm high Copper bead weight: 85 (+/-1) g
